Infrared Camera Rental

FLIR Systems Thermacam E320 for rent
  • FLIR Systems Thermacam E320 for rent
  • FLIR E-320 thermacam rental pricing
  • FLIR E320 with laser pointer
  • Video output and power supply for E320 Rents
  • The full kit of the E320 FLIR Infrared Camera including FLIR Quickview software
Product #125400

FLIR Systems Thermacam E320 Rental

ThermaCAM E320 infrared camera for rent.  The E320 from FLIR SYSTEMS INC is a powerhouse high resolution thermal imager. Uncooled 320x240 resolution thermal, up to 500C temp measurement, video out, Laser and rugged IP54 encapsulation. Rent a ThermaCam Today!

Contact SPI for Details

Contact Us

CAPTCHA
This question is for testing whether you are a human visitor and to prevent automated spam submissions.
Image CAPTCHA
Enter the characters shown in the image.

Rent the FLIR ThermaCam E320 Infrared Camera Rental

The FLIR Systems Inc. ThermaCAM E-320 is a legendary industrial thermal inspection infrared camera. The E320 is a top of the line 320x240 resolution thermal imager manufactured by the leader in thermal imaging systems, FLIR Systems Inc. We stock excellent condition E 320 Thermacam systems for rent. All ThermaCam E320 rental systems are fully evaluated by our technicians and are maintained in excellent operating condition. The E320 has 4 times the resolution of other "low cost" 160x120 format infrared cameras currently on the market. The 320 thermacam boasts a huge 320x240 pixel microbolometer infrared camera sensor for the finest details in thermal imaging performance.  In addition to crisp "perfect" images the E320 is also capable of temperature measurement up to 500 degrees C (942F). Most "affordable" cameras that are flooding the market these days can only measure temperature up to 100c or 250c. The E320 extends your reach to extend your capabilities.  Easy to use even for beginning thermographers the FLIR E320 is an infrared camera rental that you can use immediately, right out of the box. Call today for pricing and availability to RENT the FLIR ThermaCam E320.



Packed With Premium Features


320x240 THERMAL SENSOR

The ThermaCam E320 boasts a large format 320 x240 pixel resolution thermal focal plane array for stunning thermal images in a small package.



INTERNAL INFRARED CAMERA IMAGE STORAGE

Save images in the field for download to a computer later. The E-320 stores thermal images in its onboard memory. You dont have to ever worry about corrupted or misplaced data cards, the E320 Thermacam is always ready to work for you.


VIDEO OUTPUT

The FLIR E 320 has a standard NTSC video output RCA jack located in the handle of the infrared cameras. This allows for easy display of images on a large screen for review or presentation.



ACCURATE HIGH TEMPERATURE MEASUREMENT

Most cameras these days only measure temperature to 100c or 250c. The 320 provides accurate radiometric temperature measurement all the way up to 500c. Tackle any job by RENTING the E 320 Thermacam today.


LCD DISPLAY

The 320 Therma Cam features a bright and clear LCD display to take advantage of the full high resolution thermal images.



ZOOM AND LASER

The E320 has an onboard digital zoom (2x and 4x thermal zoom) and a built in laser pointer.



IDEAL APPLICATIONS FOR THE FLIR E320

  • Industrial thermography inspections of factories
  • Predictive maintenance surveys of electrical equipment
  • Motor and bearing inspections
  • Substation and electrical transmission facilities
  • Energy Audits of homes and buildings
  • Circuit board PCB analysis
  • Equine thermography of horses

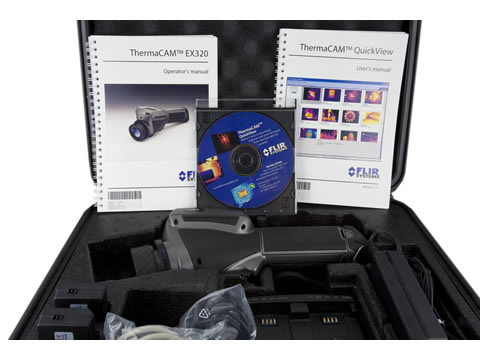

What's Included In This Kit

  • E320 FLIR 320x240 thermal camera
  • Manual focus high quality Germanium lens
  • FLIR ThermaCAM Quickview software
  • Hand Strap
  • 2 lithium ion rechargeable batteries
  • 2 bay battery charger
  • USB PC interface cable
  • Video output cable
  • Users manual
  • Hard shell carrying case
FOR INFORMATION ON RENTING THE THERMACAM E-PRICE AND AVAILABILITY CONTACT SPI 702-369-3966

“Sierra Pacific Innovations is in no way related to, or affiliated with, FLIR Systems, Inc., nor is Sierra Pacific an authorized distributor of FLIR Systems, Inc. Thermography Systems.  SPI is an authorized distributor for FLIR Systems Inc. Government Systems available here”



IMAGING PERFORMANCE
Field of view/min focus distance 23° x 17°/0.3 m
Thermal sensitivity 0.1°C at 30°C
Focus Manual
Detector type Focal Plane Array (FPA), uncooled microbolometer 320 x 240 pixels
Digital Zoom 1 x, 2 x or 4 x
Spectral range 7.5 to 13 µm


IMAGE PRESENTATION
Video output PAL or NTSC, standard RCA composite video
External display 2.5" color LCD, 16K colors



MEASUREMENT


Temperature range -20°C to +500°C (in 2 ranges) optional: +250°C up to +1,200°C
Accuracy ±2°C, ±2%
Repeatability ±1°C, ±1%
Measurement mode 3 movable spots, area max, area min, area average, temp. difference color and/or sound alarm above or below, auto hot-spot
Menu controls Palettes (iron, rainbow, rainbow HC, B&W, B&W inverse), auto-adjust (continuous/manual)
Set-up controls Date/time, temperature units °C/°F, language, scale, info field, LCD intensity (high/normal/low)
Measurement corrections Emissivity variable from 0.01 to 1.0, reflected ambient


IMAGE STORAGE
Type Built-in FLASH memory (> 80 Images)
File formats Standard JPEG
Text annotation of images Predefined text selected and stored together with the image


LENSES (optional)
2 x Telescope 14° x 10°/0.5m
0.5 Wide angle 41° x 31°/0.2m



LASER LOCATIR™


Classification Class 2
Type Semiconductor AIGaInP Diode Laser: 1mW/635 nm red


BATTERY SYSTEM
Type Li-Ion, rechargeable, field replaceable
Operating time 2 hours continuous operation. Display shows battery status
Charging system In camera, AC adapter or 12 V from car (with optional Std. cable) 2 bay intelligent charger, 12 V
AC operation AC adapter 90-260 V AC, 50/60 Hz, 12 V DC out
Voltage 11-16 V DC
Power saving Automatic shutdown and sleep mode (user selectable)


ENVIRONMENTAL SPECIFICATION
Operating temperature range -15°C to +50°C
Storage temperature range -40°C to +70°C
Humidity Operating and storage 20% to 80%, non-condensing
Encapsulation IP54, IEC 359
Shock Operational: 25G, IEC 68-2-29
Vibration Operational: 2G, IEC 68-2-6


PHYSICAL CHARACTERISTICS
Weight <800 g, incl. battery
Size 272 mm x 80 mm x 105 mm
Tripod Mounting 1/4" - 20
Cover case Plastic and rubber


INTERFACES
USB Image and text transfer to PC
RS-232 cable (optional) Image and text transfer to PC
Video Output Standard RCA composite video
