Infrared Camera Rental

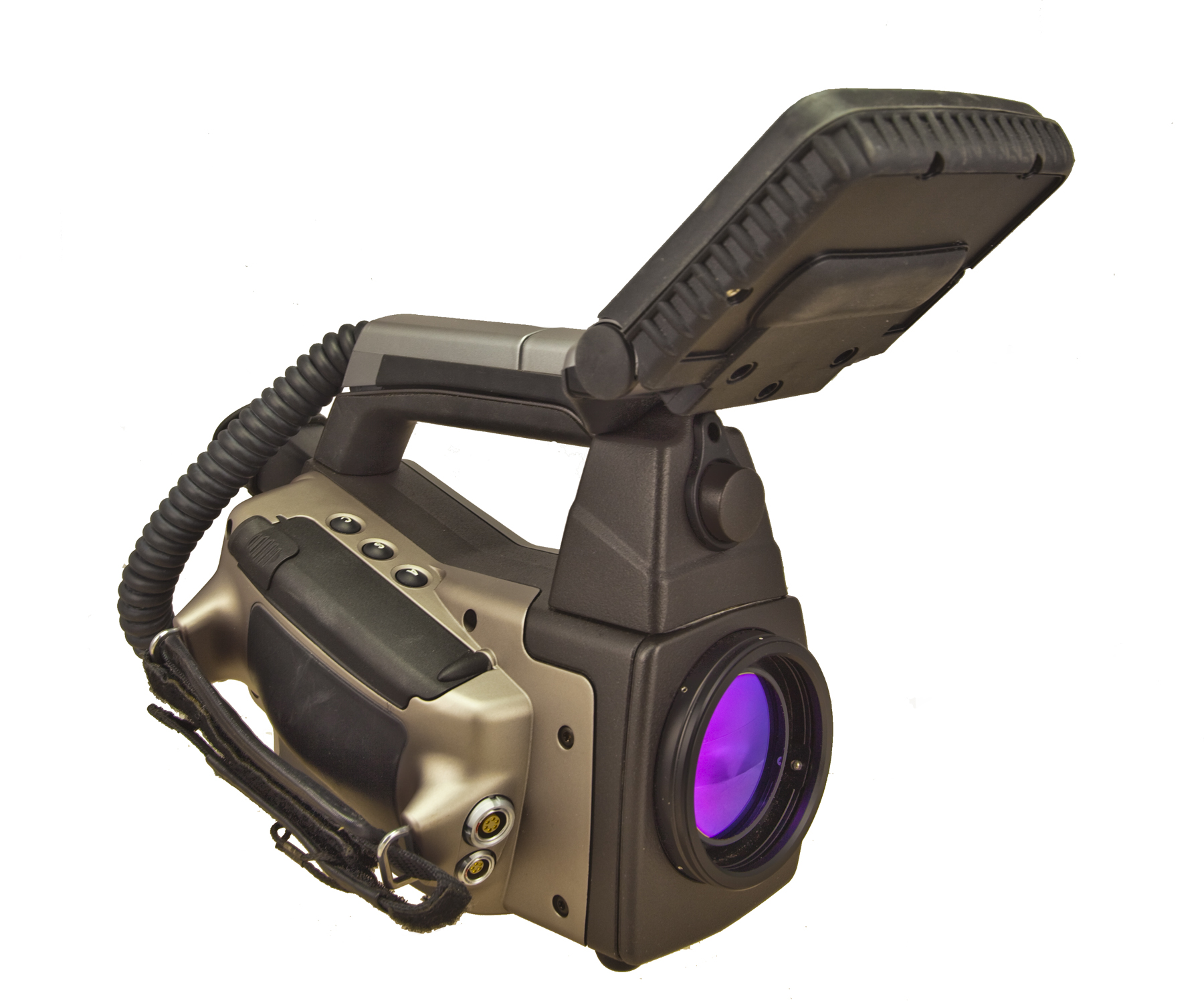

Main picture of the ThermaCam P40 by FLIR
  • Main picture of the ThermaCam P40 by FLIR

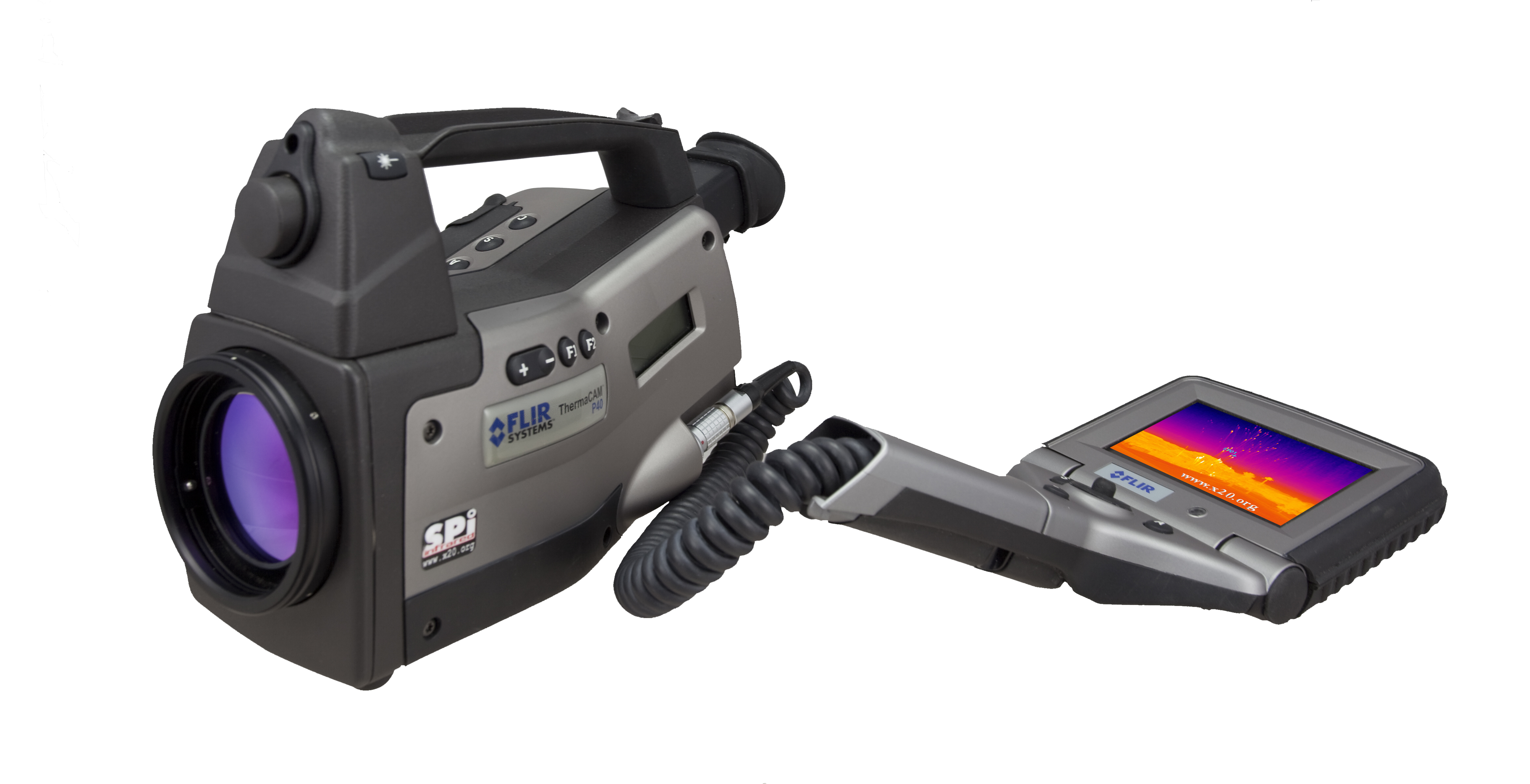

  • Back view with the LCD Screen Attached of the ThermaCam P40 by FLIR

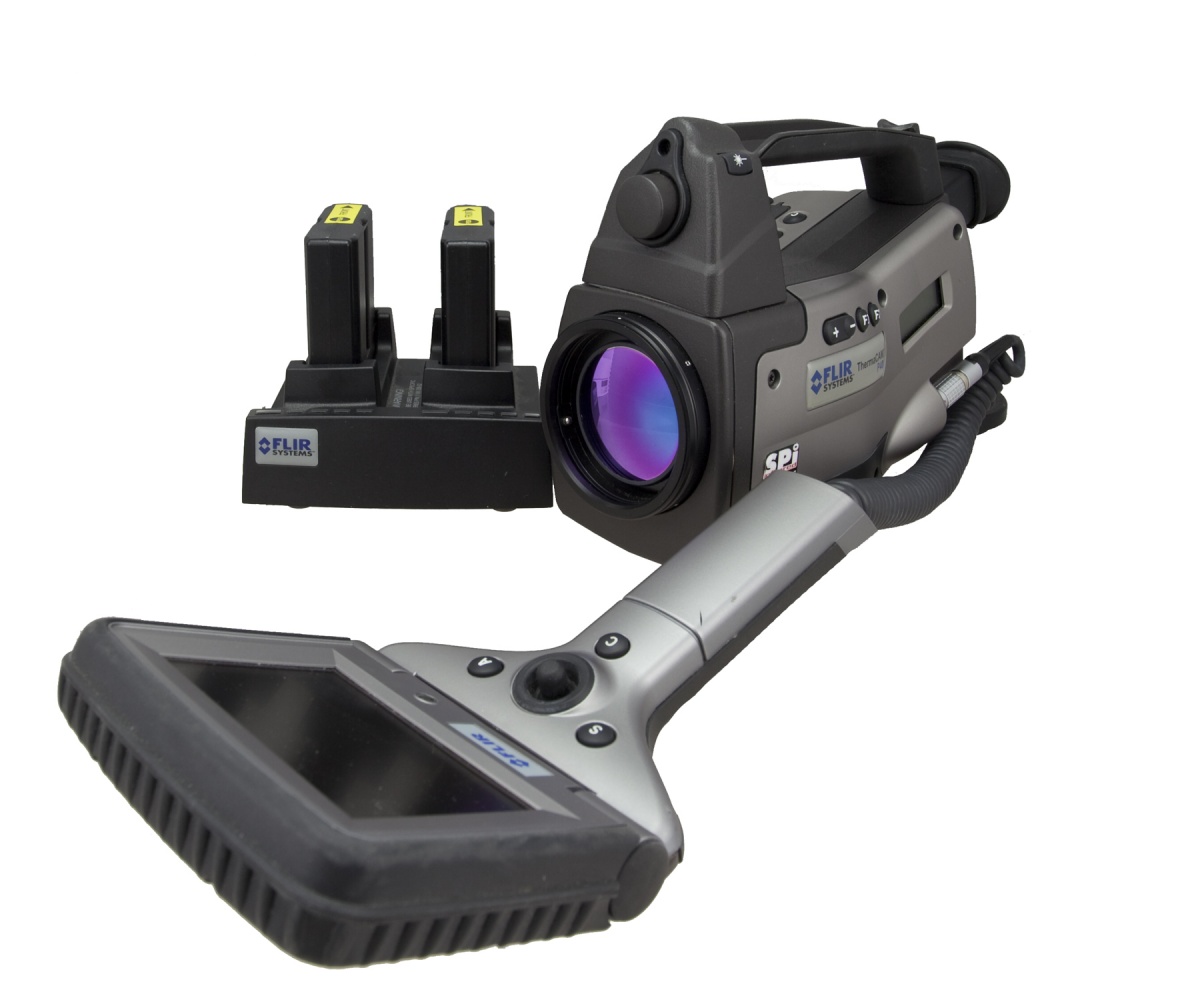

  • View of the camera and lcd screen detached of the ThermaCam P40 by FLIR
  • Side view of buttons of the ThermaCam P40 by FLIR

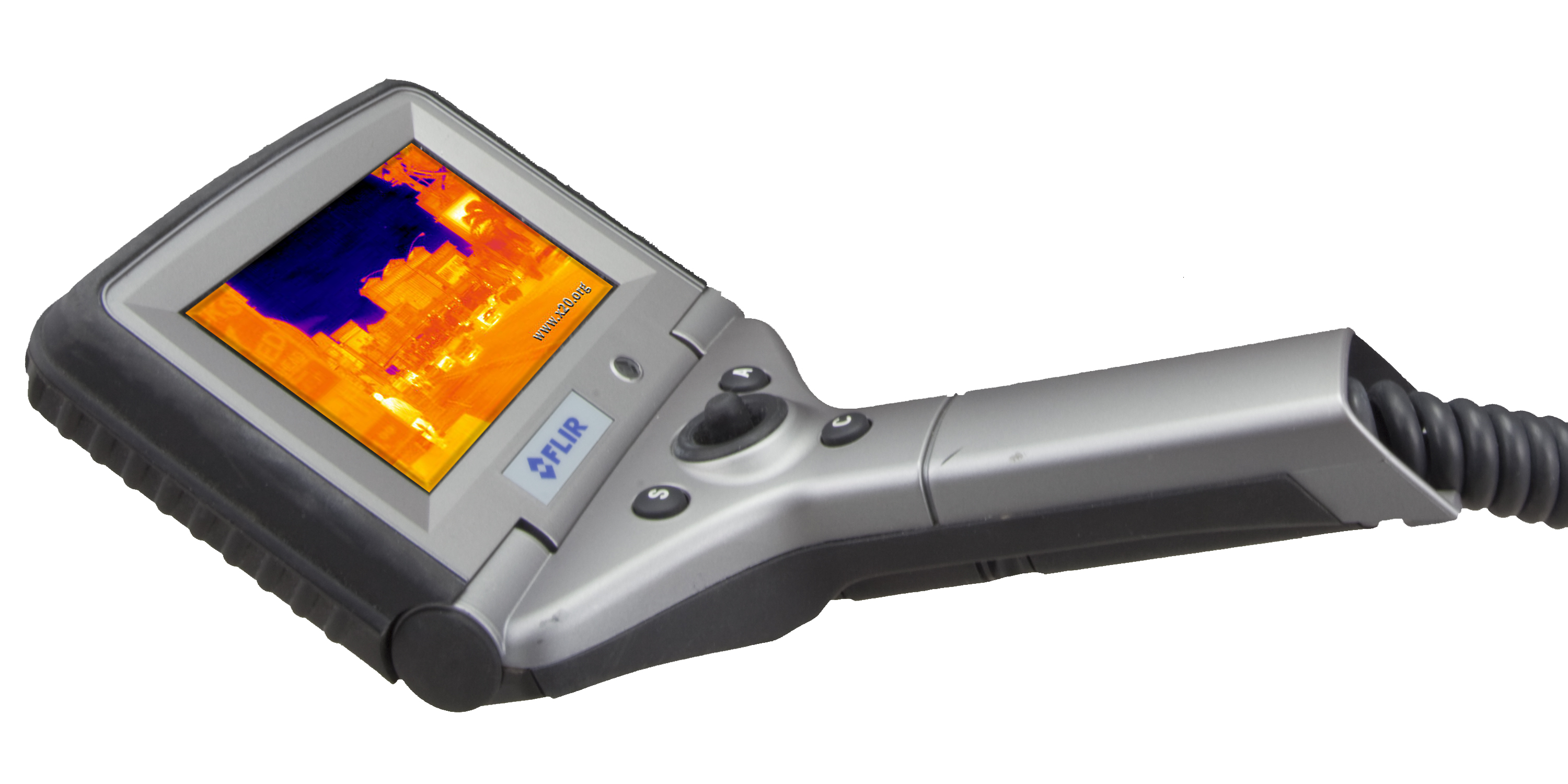

  • LCD Screen of the ThermaCam P40 by FLIR
Product #F-P40

FLIR SYSTEMS ThermaCam P40

The FLIR Systems Inc ThermaCam P40 is a great infrared camera for the rugged enviroment, with it being engineered for fast and accurate electrical and even machanical inspections you can't beat this device.

Contact SPI for Details

Contact Us

CAPTCHA
This question is for testing whether you are a human visitor and to prevent automated spam submissions.
Image CAPTCHA
Enter the characters shown in the image.

FLIR Systems Inc. ThermaCam P40 Key Features

The FLIR Systems Inc ThermaCam P40 has outstanding image quality. With its high thermal sensitivity it lets you see problems before they turn into disasters. It has a state-of-the-art, fourth generation 320 X 240 uncooled microbolometer. The P40 has a user-friendly interface that includes a joystick and a menu that any one can navigate. You can download JPEG images that are stored in full 14-bit pixel values with all the measurement data direct to your PC with ThermaCam Connect sofware. It weighs 30% less than the comparable IR camera at just 3 lbs (1.4kg), the ultra-portable P40 will comforatable fit in you hand. Rental of this high technology gear are also available. Supply is limited so call today.



ThermaCam P40 Includes

  • IR Camera
  • Carring Case
  • Lens cap, shoulder strap, hand strap
  • Manual
  • 5 Batteries
  • Power supply including cable
  • Battery Charger
  • Head-Set
  • Video cable RCA-plug
  • USB cable
  • S-Video cable
FLIR Systems Inc ThermaCam P40
FLIR Systems Inc ThermaCam P40
FLIR Systems Inc ThermaCam P40
FLIR Systems Inc ThermaCam P40
SC1000/ PM390/ PM290/ PM190 photo of a utility pipe
SC1000/ PM390/ PM290/ PM190 Outdoor level of liquid tank

                                   SC1000/ PM390/ PM290/ PM190 photo of a persons back using infrared

“Sierra Pacific Innovations is in no way related to, or affiliated with, FLIR Systems, Inc., nor is Sierra Pacific an authorized distributor of FLIR Systems, Inc. Thermography Systems.  SPI is an authorized distributor for FLIR Systems Inc. Government Systems available here”

IMAGING PERFORMANCE

  • Field of view/min focus distance: 24° x 18° / 0.3 m
  • Spatial resolution (IFOV): 1.3 mrad
  • Thermal sensitivity @ 50/60Hz: 0.08 °C at 30 °C
  • Electronic zoom function: 2,4 interpolating
  • Focusing: Automatic or manual
  • Digital image enhancement: Normal
  • Detector type: Focal plane array (FPA), uncooled microbolometer
                             320 x 240 pixels
  • Spectral range: 7.5 to 13 μm


MEASUREMENT

  • TEMPERATURE MEASUREMEHT RANGE   -40 to 120°C (-40 to 248°F) Range 1
                                                                    -0 to 500°C (-32 to 932°F) Range 2
  • EXTENDED TEMP MEASUREMENT RANGE To 1500°C (2,732°F) or 2000°C (3,632°F)
  • ATMOSPHERIC TRANSMISSION CORR. Inputs for distance, atmospheric. temperature, and relative humidity
  • ACCURACY ±2% Or 2°C
  • Measurement modes:Spot/manual (up to 10 movable), Area (up to 5 movable), isotherm, line profile,Delta T
  • Automatic emissivity correction: Variable from 0.1 to 1.0 or select from listings in pre-defined material list
  • Measurement corrections: Reflected ambient, distance, relative humidity, external optics. Automatic, based on user input
  • Lens recognition and measurement corrections: Automatic



IMAGE STORAGE

  • Type: Removable Flash-card (128 MB)
  • File format: Standard JPEG. 14 bit measurement data included.
  • Voice annotation of images:30 seconds of digital voice “clip” stored with the image
  • Text annotation of images: Manual




SYSTEM STATUS INDICATOR

  • LCD Display: Shows status of battery and storage media. Indication of power, communication and storage modes.



POWER SOURCE

  • Battery type: Li-Ion, rechargeable, field-replaceable
  • Battery operating time: 2 hours continuous operation
  • Battery charging: In camera or 2 bay intelligent charger 12V
  • In-camera battery charging: AC adapter or 12V from car
  • AC operation: AC adapter 110/220 VAC, 50/60Hz
  • Power saving: Automatic shutdown and sleep mode (user-selectable)



ENVIROMENAL

  • Operating temperature range: -15°C to +50°C (5°F to 122°F)
  • Storage temperature range: -40°C to +70°C (-40°F to 158°F)
  • Humidity: Operating and storage 10% to 95%, non-condensing
  • Encapsulation: IP 54 IEC 359
  • Shock: Operational: 25G, IEC 68-2-29
  • Vibration: Operational: 2G, IEC 68-2-6



PHYSICAL CHARACTERISTICS

  • Weight: 1.4 kg (3.1 lbs), including battery
  • Size (L x W x H): 1.2kg (2.6lbs), excluding battery
  • Tripod mounting: 100mm x 120mm x 220 mm ( 3.9” x 4.7” x 8.7”)
                                 1/4”- 20



INTERFACES

  • USB / RS232: Image, measurement data, voice transfer to PC
