Infrared Cameras

Side view of the the x250 thermal camera
  • Side view of the the x250 thermal camera
  • Integrated lens cap on the X250
  • Side view of infrared camera 250
  • Eyepiece of the 250
  • Memory card slot on the camera
  • NTSC video output jack on the cameras
Product #547456

X-250 XP Thermal Imager

The X-250 is a break through thermal device that is the worlds first low cost universal imager.  The X-250 combines the features and ergonomics needed to successfully perform any application. From security/law enforcement missions to detailed industrial and energy audit inspections, the X-250 can do it all and do it for less.  A lot less!

Contact SPI for Details

Contact Us

CAPTCHA
This question is for testing whether you are a human visitor and to prevent automated spam submissions.
Image CAPTCHA
Enter the characters shown in the image.

The UNIVERSAL X-250 Low Cost Thermal Imager and Low Cost Infrared Camera

Key Features

The X-250 is the first low cost device that meets the needs of professionals across all platforms. Based on a new low cost VoX microbolometer thermal sensor, the x250 delivers high performance detailed thermal imagery at unheard of low pricing. The 250 is ergonomically designed to fit easily in your hands and be light enough to carry anywhere. For Law Enforcement professionals the 250 is a vital tool that is ready at a moments notice for suspect search, routine patrol, hidden compartment detection and officer safety at night. Thermal imaging is the ultimate night vision technology and with the easy to use x250 any department can afford to have a thermal imager in their squad cars. But there is more to the x250 than ordinary thermal imagers, so much more. The X250 features multiple color palettes, temperature measurement, video output and image storage on standard memory cards. This makes the x250 a low cost infrared camera system capable of advanced thermal analysis of industrial electrical equipment, predictive maintenance programs and building envelope energy audits. Great care was taken in the design of the X250 camera to make it a versatile, low cost tool that can perform well across a variety of applications. The x250 is an infrared camera that brings thermal imaging to the people!

Intelligent Design for Easy Operation

MEMORY CARD STORAGE

Store digital thermal still images direct to standard memory cards available at any local store.

VIDEO OUTPUT

Put your awesome thermal images on a big screen that does them justice. The X-250 outputs standard NTSC video.

EASY BUTTONS

Ease of use is the hallmark of the powerful X-250 thermal imager. 3 buttons control the entire system.

RUGGED DESIGN

Uses standard AA batteries or rechargeable AA batteries (available at local stores worldwide).


Advanced Monocular Thermal Imager With Temperature Measurement.






The possibilities are endless with the X-250. The perfect low cost thermal imager for law enforcement and industrial inspection applications. Yes you can do it all with the X-250!


Thermal Inspection of industrial pumps and piping.


Infrared image of a human in black hot.


CUSTOMIZABLE OPTIONS

The SPI X-250 has a variety of options to suit your individual needs. Optional lens configurations and frame rates for your locality.

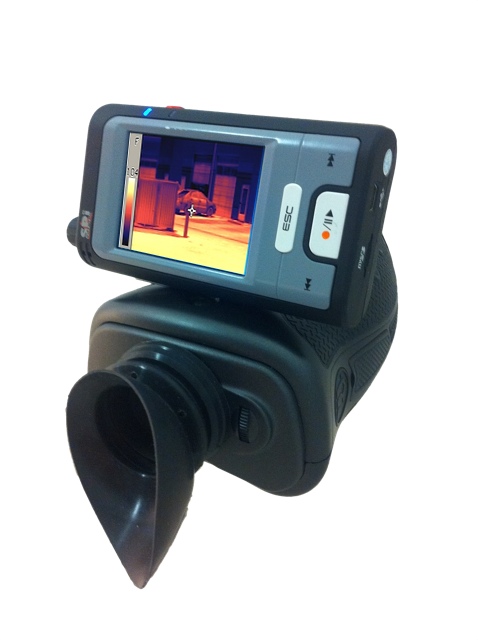

Thermal video with dvr
Optional SPI XDVR Module lets you record thermal video live and in real time.

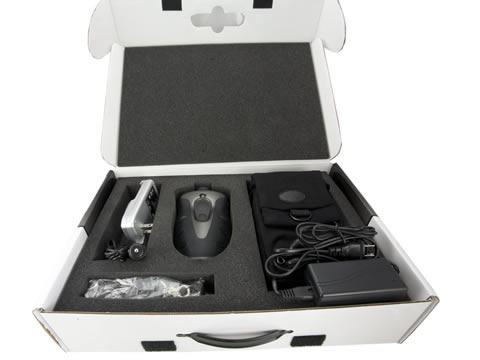

The x250 kit includes

  • X250 hand held thermal imager
  • Video output
  • Temperature measurement
  • Four AA NiMH Rechargeable Batteries & Charger with LED status indicator lights
  • AC Power Adapter – Provides continuous power
  • DC Power Car Adapter – For those who need continuous power from a vehicle
  • 2 Lanyards (Neck and Wrist) – Accommodates user preference
  • Soft Camera Case – Protects the camera when not in use
  • Video cable – Connects the camera to an external monitor
  • 2 GB SD Card – Stores captured still images, up to 500 quantity

X-250 Infrared Camera Specifications



Diopter Adjustment +/-2%
Start up sequence <8 seconds
Thermal Sensitivity, Waveband <80 mK @ f/1.2
Display 320 x 240 LCD
Temperature Readout Displays Center Point Temperature +
Still Image File Format and Size 320 x 212 resolution, 229 Kb
Operating Temperature 32°F – 140°F (0°C – 60°C)
Weight (including lens) 1.1 lb. (.50 kg)
Size 7" L x 2.5"H x 3.75" W
