Thermal Imager

x26 thermal rifle scope
  • x26 thermal rifle scope
  • x26 thermal rifle scope side
  • x26 thermal rifle scope
  • x26 thermal rifle scope lens
  • x26 thermal rifle scope mounted on stand
  • x26 thermal rifle scope kit
Product #3456

X26 Thermal Rifle Scope

The X26 advanced tactical combat thermal rifle scope is now available.  The X26 Thermal weapon sight is a high resolution user friendly scope designed for law enforcement, military and game control applications.  The versatile X26 can be used as a rock solid weapon sighting platform or an ergonomic handheld thermal spotting scope.

Contact SPI for Details

Contact Us

CAPTCHA
This question is for testing whether you are a human visitor and to prevent automated spam submissions.
Image CAPTCHA
Enter the characters shown in the image.

X26 Thermal Rifle Scope Key Features

The X26 Thermal Rifle Scope is the newest thermal weapon sight available that incorporates the latest in advanced weapon sighting technologies. Designed to perform in the most demanding of applications- including military operations, law enforcement scenarios and extreme hunting- the X26 Thermal Weapon Sight is the targeting tool of choice for professionals.

Intelligent Design for Easy Operation

PICATINNY RAIL

Quick Picatinny rail mount for tool-less lock and release.

RAIL OPTIONS

Easily attach standard rails for lasers and accessories.

LIGHT SAFE

Light safe design automatically powers off when not in use.

STANDARD BATTERIES

Uses standard CR123 batteries in a quick release cassette.

I/O PORTS

External interfaces for AC power or video output.

DIOPTER

Diopter adjustment mates the unit to your eyes.

INTEGRATED LENS CAP

Integrated flip up lens cap never gets misplaced.

TACTILE BUTTONS

Tactile Buttons are easy to use in the dark or while wearing gloves.

Advanced Thermal Weapon Sight

The future is here now and its more affordable than you think.  In today's uncertain times of world conflict, it has become more important than ever for the good guys to own the night. Traditional starlight type night vision rifle scopes have served their purpose well since the 1970's but have always been crippled by specific limitations. "Starlight" image intensified night vision weapon sights always require some ambient light source in order to operate.  Additionally, these light amplifying scopes are extremely sensitive to external light sources like vehicle headlights, streetlights and building lighting which can cause severe distortion or blooming of images. Obviously, this is not an ideal feature when contemplating a weapon aiming platform. Starlight "sensitivity" also makes this type of night vision completely unusable in daylight or low light situations.  The critical nature of weapon sighting demands reliable solutions that are as immune as possible to the variables of lighting and weather conditions.  There is no room for error in this most serious of line of work.  The X26 is the next generation of weapon sighting technology.  Thermal rifle scopes require no lighting whatsoever.  They do not even "see" light so they are completely immune to stray lighting that can ruin a night vision image.  The X26 can also be used in full daylight, which greatly expands its operational usefulness.  The X26 provides optimal features for combat or law enforcement operations and is performs excellently in those scenarios.  The X26 is also a comfortable handheld spotting scope, which further expands its already impressive capabilities. The choice is clear for any professional involved in night time operations- the X26 is your tool of choice.

FLEXIBLE OPTIONS

Unlike existing thermal rifle scope products, the X26 is designed to be equally effective as either a thermal weapon sight or a handheld thermal imager.  Great care has been taken to account for handheld ergonomics while never compromising its capability as a rock solid weapon aiming platform.

Feature Details

Quick Picatinny Rail Mount

The X26 thermal weapon wight features a unique positive locking tool-less base that is designed to quickly mount and dismount to standard Picatinny rails.  The cam lock set screws can easily be manipulated with or without gloves for operational functionality in any scenario.  Once locked the base holds tight for maximum zero retention.

Rail Detail

The X26 weapon sight is equipped with two mounting points on either side of the scope for attaching a variety of accessories to suit your specific mission profile.  Standard Picatinny rails can be attached to these points allowing for easy placement of lasers, white lights, optical sights, etc.

Light Safe Design

A true combat thermal scope, the X26 has an integrated proximity sensor so that the eyepiece automatically turns off when you move your eye away. This feature is crucial to ensuring that no stray light from the eyepiece will give away your position.  When you put your eye back up to the unit the eyepiece instantly turns back on for uninterrupted targeting.

Standard Batteries

The X26 operates on standard CR123 batteries.  The one handed quick release lever and battery cassette makes changing batteries easy even while wearing gloves or in the dark of night.

External Interfaces

The X26 infrared rifle scope offers the user several external connection interfaces for your convenience.  These include cables for providing the scope external power and for video output to a monitor or recording device.

Diopter

The X26 uses a battle proven military eyepiece with easy to use diopter adjustments.  The diopter gives you a full -6 to +2 adjustment range which allows you to adapt the scope to any users eyesight.

Integrated Flip Up Lens Cap

The X26 has a built in spring loaded flip up lens cap to protect your investment and ensure that the lens will never expose your position. High quality Germanium optics are protected by this integrated cap.

Tactile Buttons

X26 thermal scope is equipped with a simple command menu structure so that all functions of the scope are accessible via a three button configuration. The buttons are oversized and uniquely shaped for use in the dark or with gloves on.

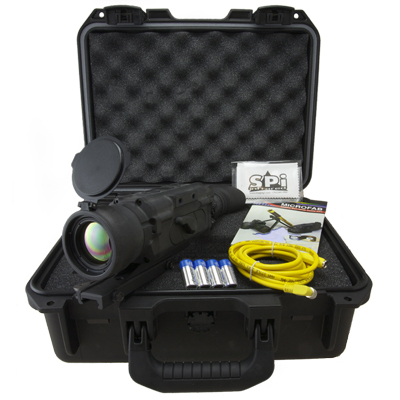

The X26 Thermal Rifle Scope Kit

The X26 Thermal Rifle Scope Kit comes with all the items pictured here, which include:

  • X26 Thermal Rifle Scope
  • External Power Adapter
  • Quick-Release 1913 Mount
  • Flip Up Lens Cap
  • 4 CR124 Batteries
  • Video Output Cable
  • Heavy Duty Pelican Case
  • Lifetime Support

x26 thermal rifle scope kit

X26 Thermal Rifle Scope Specifications

DETECTOR

FPA Format: 320 x 240
Type and Material: Amorphous Silicon Microbolometer
Cooling: Uncooled
Spectral Response Sensitivity: 7 - 14 μm
NETD (Thermal Sensitivity): ≤ 50 mK
Refresh Rate: Real-time 30 Hz

PERFORMANCE

Detect Stationary Man: 1000 meters+
Optics: 50mm Focal Length, Manual Focus
Weapon Sight: 1X, 2X and 4X
Field of View (Standard): 12º x 9º
Continous Operation: 4+ Hours

PHYSICAL FEATURES

Diopter Adjustment: -6 to +2
Eye Relief: 27mm
Weight: 700 gr. (25 oz.)
Dimensions: 205 x 65 x 72mm (8 x 2.6 x 2.8 in)
Power Requirement: (4) CR123 Batteries or 9-28v DC External Power Supply
Lens High Grade Germanium
Eyepiece Adjustment: Manual Focus
Waterproof: Yes
Additional Controls: Brightness & Contrast

ADDITIONAL FEATURES

Polarity Control: Black Hot / White Hot
Display: 640 x 480 Pixels
Temperate Reading: Yes (Optional)
Colorization: Monochrome (Color Optional)
Video Output: NTSC (STD) PAL (On Request)

X26 Thermal Rifle Scope Photos

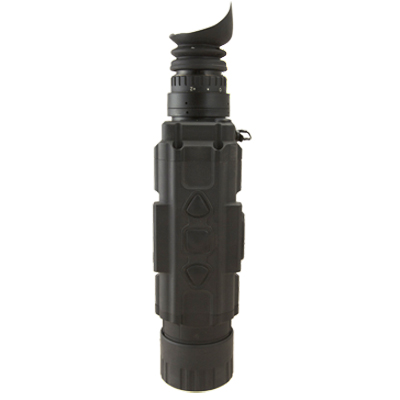

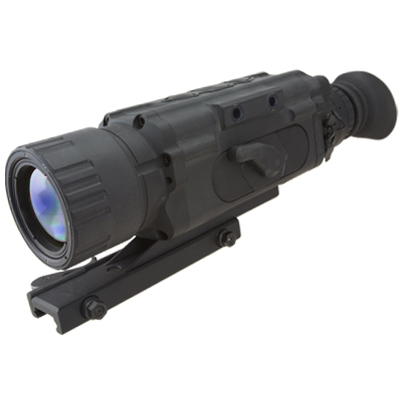

x26 thermal rifle scope
x26 thermal rifle scope x26 thermal rifle scope

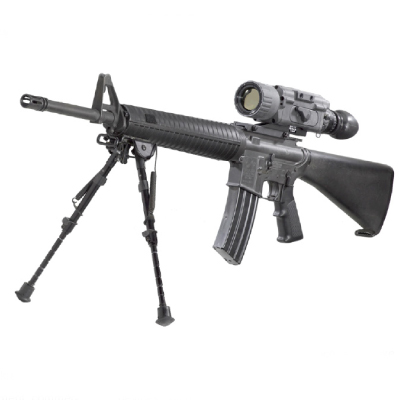

x26 thermal rifle scope mounted x26 thermal rifle scope kit

Thermal Imaging for Law Enforcement and Security

black hot surveillance

Black Hot v. White Hot Thermal Images

While the choice between viewing thermal images as either black hot or white hot is completely up to user preference, each has its own strengths. In general, white hot works best for spotting human and animal targets because the heat they generate tends to make them "glow" and stand out from the environment. In contrast, black hot works best for navigation and scanning a scene because it displays the details of the environment much better. The black hot image to the left was shot in total darkness, and still it is easy to see the land, water and boat structure. This information gives tactical officers a significant strategic advantage.
white hot surveillance

Thermal infrared surveillance technology can provides clues not apparent to the naked eye, with flash or flood lights, or even with traditional "night vision" image enhancement systems. The white hot image to the left was shot in complete darkness. Not only is the suspect visible, but the camera also reveals that the parked car in the background recently arrived because it is still warm. No other night vision technology can deliver this level of detailed information. One of the greatest benefits of thermal imaging technology is the ability to see and document a scene without giving away the officer's location.
border patrol

Thermal Imaging for Border Patrol

Border patrol agents need to cover vastly large areas with a limited number of officers. Protecting borders with thermal imaging increases apprehensions while decreasing strain on officers. Security Magazine reported that with a jurisdiction of 10,000 square miles, the Pima County Sheriff's Department acquired thermal imaging technology. The first four nights, officers returned with suspects and their drug-filled backpacks every night. The thermal imagers allow surveillance officers to overcome one of their greatest obstacles, total darkness. Man sized targets can be spotted over a half a mile away and are also visible in the glare of bright day light. Click here to read the full Security Magazine report.

How Law Enforcement Agencies Use Thermal Imaging Technology:

  • Fugitive Searches: Find anyone hidden in foliage any time of day without giving away the officer's position
  • Routine Patrols: See in the dark and find discarded evidence which retains the heat of the suspect after it has been dropped
  • Tactical Support: Scout scenes before deploying officers and give snipers the ability to make positive facial identification
  • Contraband Detection: Find hidden compartments in vehicles and structures with no physical contact
  • Perimeter Surveillance: Find and track hidden individuals, even if they know a camera is present
  • Search and Rescue: Find stranded fire victims, avalanche survivors, lost hikers, and plane crash victims, even if they are non- responsive

Thermal Imaging Grant Opportunities for Law Enforcement

Law enforcement agencies are continually asked to do more with less, leaving them with fewer financial resources to fund programs and acquire critical equipment. As a result, many agencies seek grant funds to supplement their budgets and achieve their goals.



Below is a list of grant source links for law enforcement agencies. Since the federal government provides a majority of grant funds, most of the links below will refer you to federal grant resources. However, some law enforcement agencies have been successful at receiving grants from other sources such as corporations or private foundations.



Edward Byrne Memorial Competitive Grant Program

Homeland Security Grant Program (HSGP)

Commercial Equipment Direct Assistance Program (CEDAP)

Assistance to Rural Law Enforcement to combat Crime and Drugs Competitive Grant Program

Correctional Facilities on Tribal Lands Grant Program

Combating Criminal Narcotics Activity Stemming from the Southern Border of the U.S. Competitive Grant Program
