XP 5000 Radiometric Infrared Camera

RAZ-IR PRO XP 5000 Radiometric Infrared Ir flir thermal Camera


IP network/analog/digital XGA 1024×768 and SXGA 1280×1024 HD thermal imaging camera core engines Available in ultra-sensitive 12 µm or 17 µm with the thermal imaging core only and with selectable fixed/zoom germanium lenses

The IRXP-5000 is a full featured XGA thermal analysis camera designed for Laboratory, Educational and Security applications. The 5000 is fully IP addressable and comes complete with Analysis Software and SDK.

CALL TODAY for pricing! (702) 369-3966.




RAZ-IR PRO XP 5000 radiometric infrared camera lens

RAZ-IR PRO XP 5000 radiometric infrared camera lens

The RAZ-IR XP5000 radiometric infrared camera gives you unprecedented thermal analysis capabilities in a low cost highly configurable package. The 5000 is a fully radiometric thermal infrared camera system that connects to a PC via CAT-5 Ethernet connection with fully IP Addressable control and monitoring. The 5000 comes with full research IR analysis software and can transfer real time radiometric thermal data and video over the Ethernet connection. The 5000 also comes with a complete SDK to allow you to integrate the thermal camera into your own systems. Not only can the 5000 infrared camera be operated via Ethernet but it also comes with standard RS 485 serial control and analog NTSC video output. This makes it an ideal solution for thermal security camera applications and educational or demonstration installations. The 5000 Infrared cameras are also excellent process control or process automation thermal cameras ideal for use in factory settings.

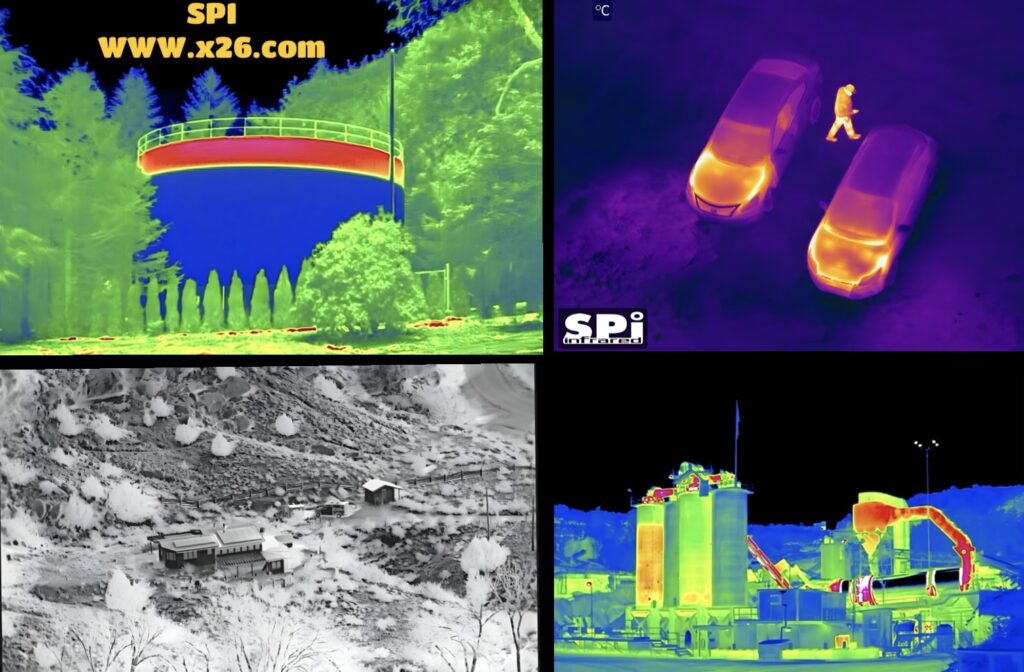

Hd LWIR thermal image

Human thermal facial recognition flir image

Long range Network ip ethernet RJ 45 flir PTZ thermal imaging ir camera

Intelligent Design for Easy Operation

    The XP 5000 radiometric infrared camera is easily installed in laboratory or factory settings.

    IR XP 5000 radiometric infrared camera

    Complete camera control and video / data transmission through IP addressable Ethernet connection.

    IR XP 5000 radiometric infrared camera Ports

RAZ-IR PRO XP 5000 Radiometric Infrared Camera Demo Video

Top Features in a Low Cost Radiometric Infrared Camera

The 5000XP has a wealth of advanced features normally found on infrared cameras that cost tens of thousands of dollars. The high resolution imaging of the 5000 thermal video rivals the most expensive cameras on the market today. Advanced temperature measurement and alarming functions let you integrate the 5000 into any application that you have. From infrared microscopy to laboratory analysis to process control to factory automation to perimeter security, the 5000XP has got you covered.

IR XP 5000 radiometric infrared camera on a Stand

Advanced Product Features

Announcing the latest in high performance low cost IP addressable thermal infrared camera analysis instruments from SPI. This model is a new addition to the product family. This means you get the most up to date technology, securing your investment for years to come. Accurate radiometric temperature measurement and SDK Ethernet interface lets you accurately quantify the temperature of any pixel in the scene you are viewing.

The world wide choice of thermography professionals, laboratories, museums and educational institutions. Now shipping to destinations around the world. Our export team can assist you with international shipments.

Optional Lenses
A wide variety of optional lenses are available for the IRXP-500-XP thermal analysis camera suitable for any application you might have. Contact an application specialist to discuss your unique needs.

Innovative Forward Looking Vision
With an eye to the future and a passion for innovation, SPI Infrared brings you the freshest approach to thermal imaging. Building on the traditional capabilities of the RAZ-IR family of infrared cameras, the PRO leaps into the future with innovative features in the most mobile and affordable infrared camera available any where.

The RAZ-IR XP 5000 Kit

The RAZ-IRXP 5000-XP Thermal Camera Kit comes with all the items pictured here, which include:

  • RAZ-IR 5000-XP Professional Ethernet Thermal Imager
  • Ethernet Interface
  • Serial control interface
  • Hard Case
  • NTSC analog video output
  • Video Output cables
  • CAT-5 Ethernet cable
  • Advanced Analyzer Software
  • Software SDK
  • User interface GUI
  • Lifetime Support, Full Warranty

RAZ-IR 5000-XP Specifications

Detector Type: FPA, uncooled ASi Microbolometer
Thermal Resolution: 384 × 288 pixels / 640 x 512 pixels and 1024 x 768 12 µm or 17 µm XGA HD RESOLUTION
Spectral Range: 8 – 14μm
Field of View: 17.5° × 13° / variable optics available from short, mid to long range including optical zoom.
Thermal Sensitivity: ≤ 35mk
Temperature Range: -20℃ to 100℃

-20℃ to 500℃ (Optional)

Accuracy: ±2℃ or ±2% of reading
Measurement Modes: Spot, area, isotherm, line profile, auto hot spot, auto alarm
Emissivity Correction: Variable from 0.01 to 0.99 in 0.01 increments
Measurement Features: All correction based on distance, relative humidity, atmospheric transmission & external optics

Type: DC 12V
Power Consumption: <6W

Operating Temperature: -15℃ to 50℃
Storage Temperature: -40℃ to 70℃
Humidity Operation and Storage: 10% to 95%, non-condensing
Encapsulation: IP54
Operational Shock: 25G, IEC 68-2-29
Operational Vibration: 2G, IEC 68-2-6

Man-Machine Communication: Button & on-screen menu
Interface: RS485 (PELCO D), Ethernet 10/100 Base (Temp. Raw Data)
Alarm: Low battery warning, user defined max/min temperature rise/fall
Size: 120mm x 60mm x 30mm
Weight: .265kg (including batteries)

Product Images

Sample screen shots of the IRXP USER interface GUI included with each purchase.

  • XP 5000 Infrared Camera GUI view 3
  • XP 5000 Infrared Camera GUI view 4
  • XP 5000 Infrared Camera GUI view 5
  • Sample screen shots of the IRXP USER interface GUI included with each purchase.
  • XP 5000 Infrared Camera GUI view 1
  • XP 5000 Infrared Camera GUI view 2

  • Circuit board IR survey
  • Electronics manufacturing infrared thermal profiling
  • mini component profile on pentium celeron chip
  • PCB Thermal infrared analysis image 128
  • Scientific heater coil temperature monitoring and profiling

  • XP 5000 Infrared Camera screen view 1
  • XP 5000 Infrared Camera screen view 2
  • XP 5000 Infrared Camera screen view 3
  • XP 5000 Infrared Camera screen view 4
